PEEK Rod

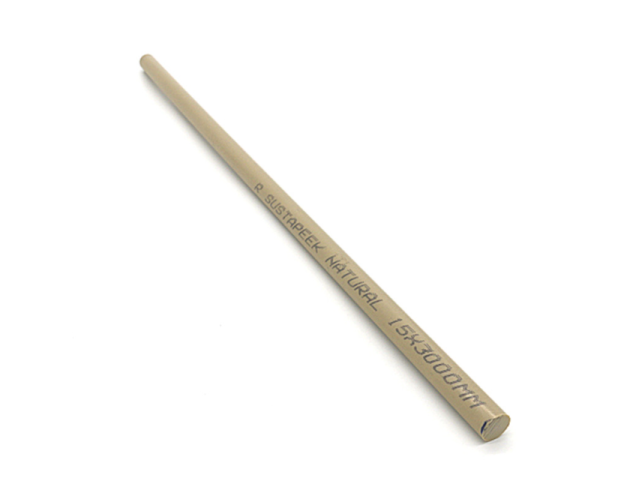

PEEK rod
Our PEEK rods are good for insulation(heat/electrical) in hot runner applications, and as mechanical parts in the drones. Technical features:
- Yield stress: 110 MPa
- Elongation at break: 20%
- Tensile modulus of elasticity: 4000 MPa
- Melting temperature: 343ºC
- Thermal conductivity: 0.25 W/(m*K)
- Thermal capacity: 1.34 kJ/(kg*K)
- Coefficient of Linear Thermal Expansion: 50 10(-6)/K
- Service temperature,long term: -60...250ºC
- Service temperature,short term: 310ºC
- Heat deflection temperature: 152ºC
- Dielectric Constant: 3.2
- Dielectric Strength: 20 kV/mm
- Volume Resistivity: 4.9*10(16) Ω·cm
- Sizes: diameter 6,7,8,12,15,16,18,19,20,22,25mm. length 1m.

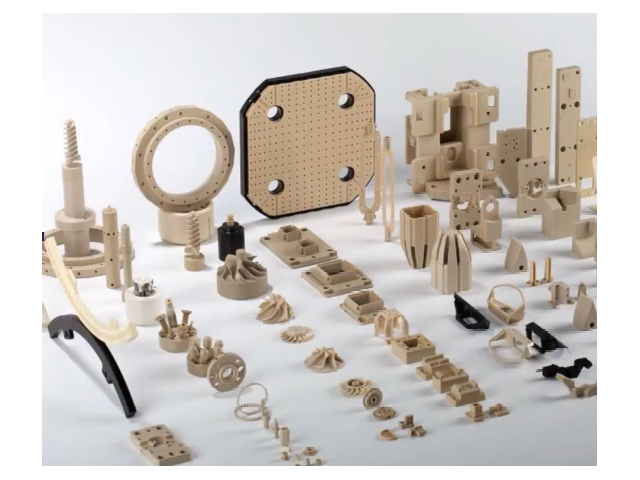

PEEK parts
We also supply PEEK parts by your drawings.
